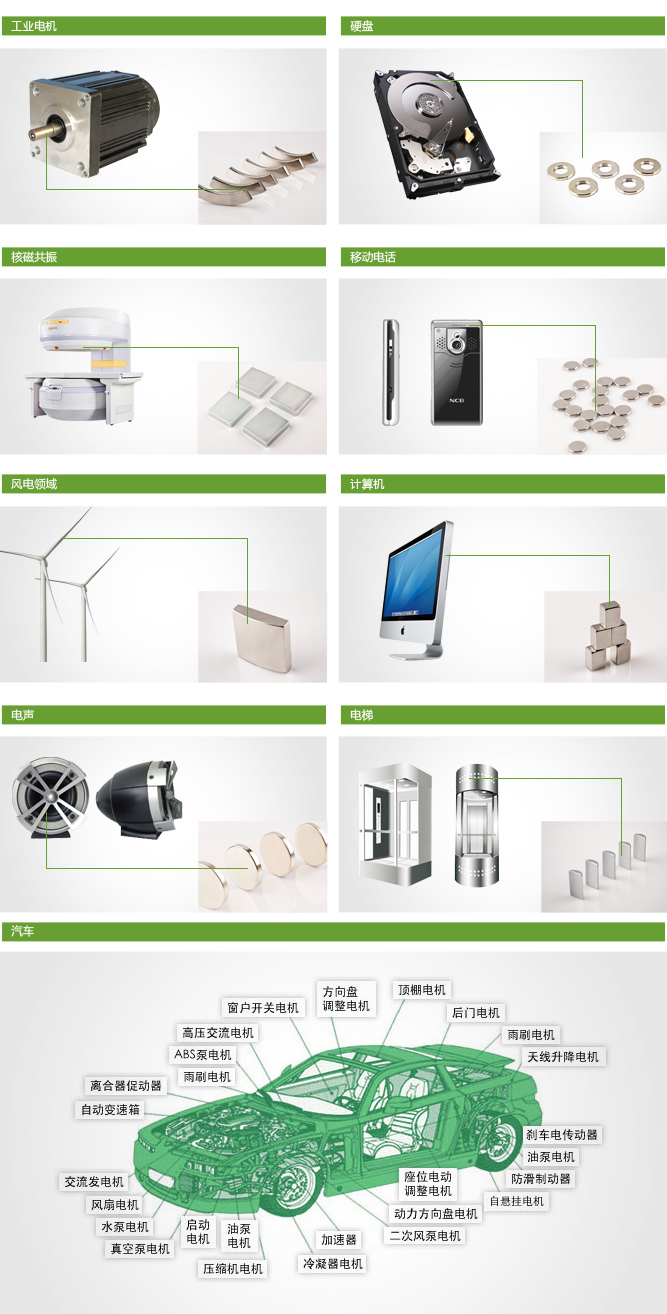

  • Application Area

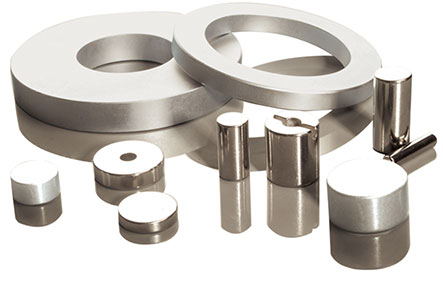

01. Introduction to neodymium iron boron

钕铁硼磁铁

Neodymium iron boron magnet is a magnet with outstanding performance in rare earth permanent magnet materials. It is an alloy magnet composed of neodymium, iron, boron, and other trace elements and made through powder metallurgy process. Neodymium iron boron magnets have high remanence, high coercivity, and high magnetic energy product. And it has excellent mechanical processing performance. So neodymium iron boron magnets are called powerful magnets.

The surface of neodymium iron boron magnets has poor resistance to oxidation and corrosion, so electroplating treatment is usually required on the surface. The electroplating types of Jinneodymium Magnet Company include phosphating, gold, silver, zinc, nickel copper nickel, epoxy resin, and so on.

Neodymium iron boron magnets are a new generation of rare earth permanent magnets, with the main component being rare earth metals. In the fierce market competition, Jinneodymium Magnet Company mainly targets customers in the fields of motors, electroacoustics, medical devices, etc., continuously exploring and developing.

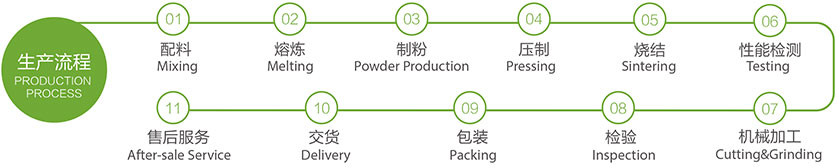

02. Production process of neodymium iron boron

The production process of neodymium iron boron magnets: ingredient melting powder pressing sintering performance testing mechanical processing inspection packaging delivery after-sales service.

钕铁硼磁铁生产流程

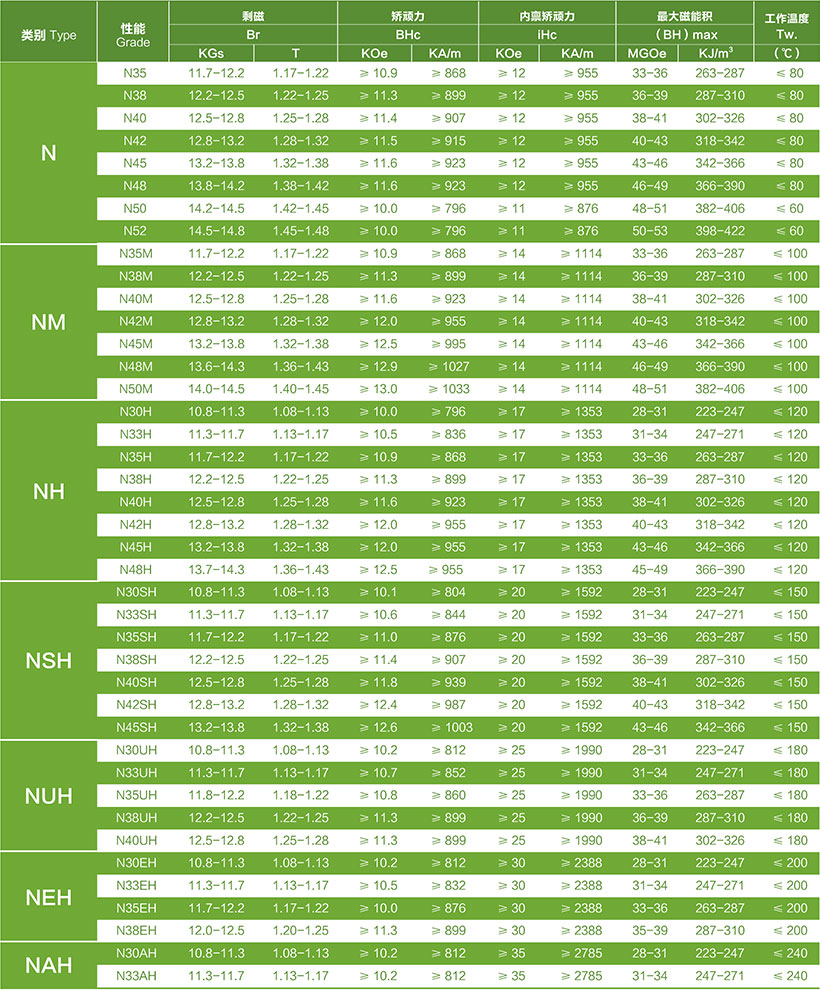

03. Performance details of neodymium iron boron

钕铁硼性能明细

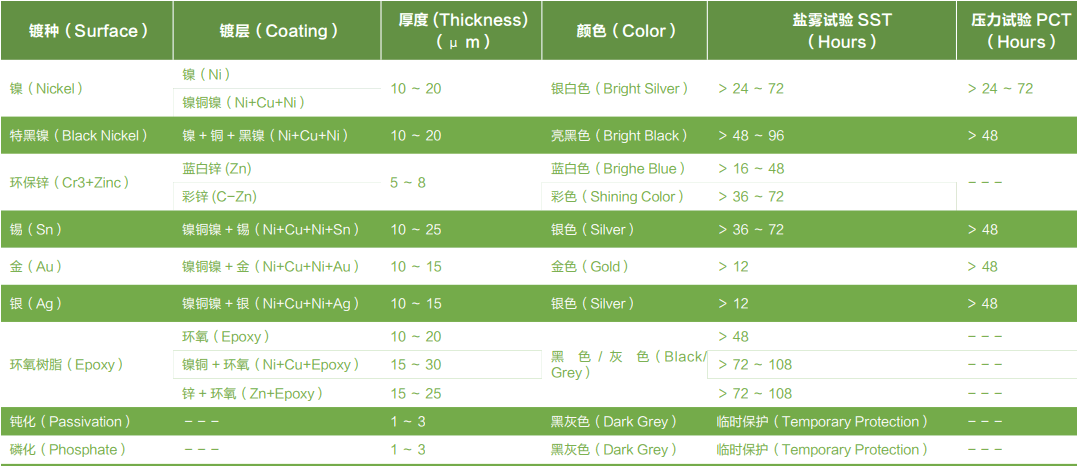

04. Introduction to neodymium iron boron coating

钕铁硼镀层介绍

remarks:

1. The effect of salt spray varies due to different electroplating processes. The salt spray test effect of roller plating (small products) is generally better than that of hanging plating products (large size products).

2. Salt spray test (SST) conditions: 5% sodium chloride solution, 35 ℃ temperature, continuous spray for a certain hour, whether there is corrosion on the coating surface.

3. Pressure test (PCT) conditions: Check the adhesion of the coating at 2 atmospheres, 95% relative humidity, and 121 ℃ temperature. Galvanizing, epoxy, passivation, and phosphating do not undergo pressure testing.

4. The inspection methods for coating quality include drop test, cross cut test, quenching and heating test, constant temperature and humidity test, etc.

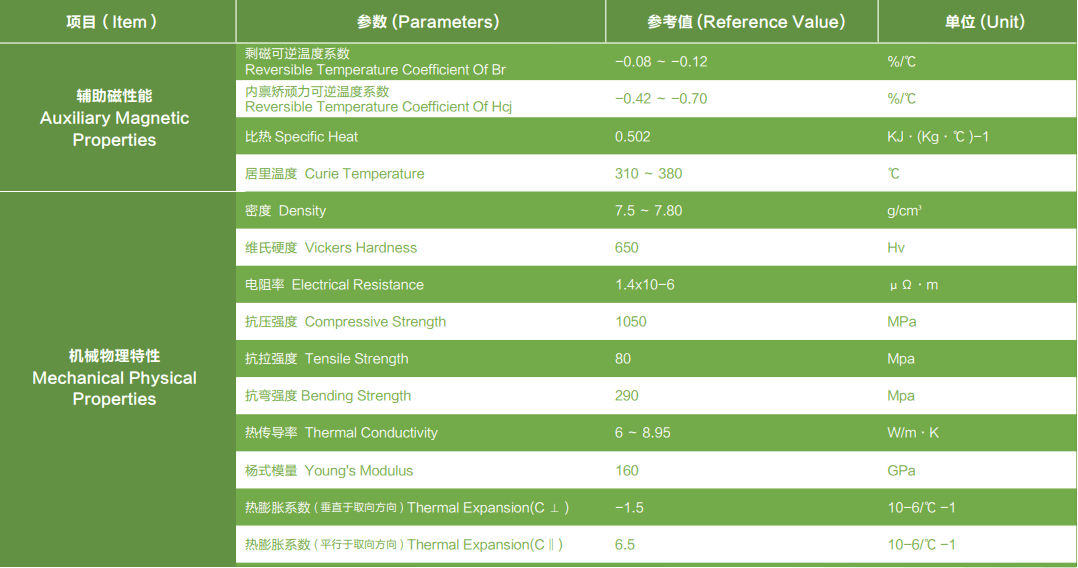

05. Physical properties of neodymium iron boron

钕铁硼物理特性

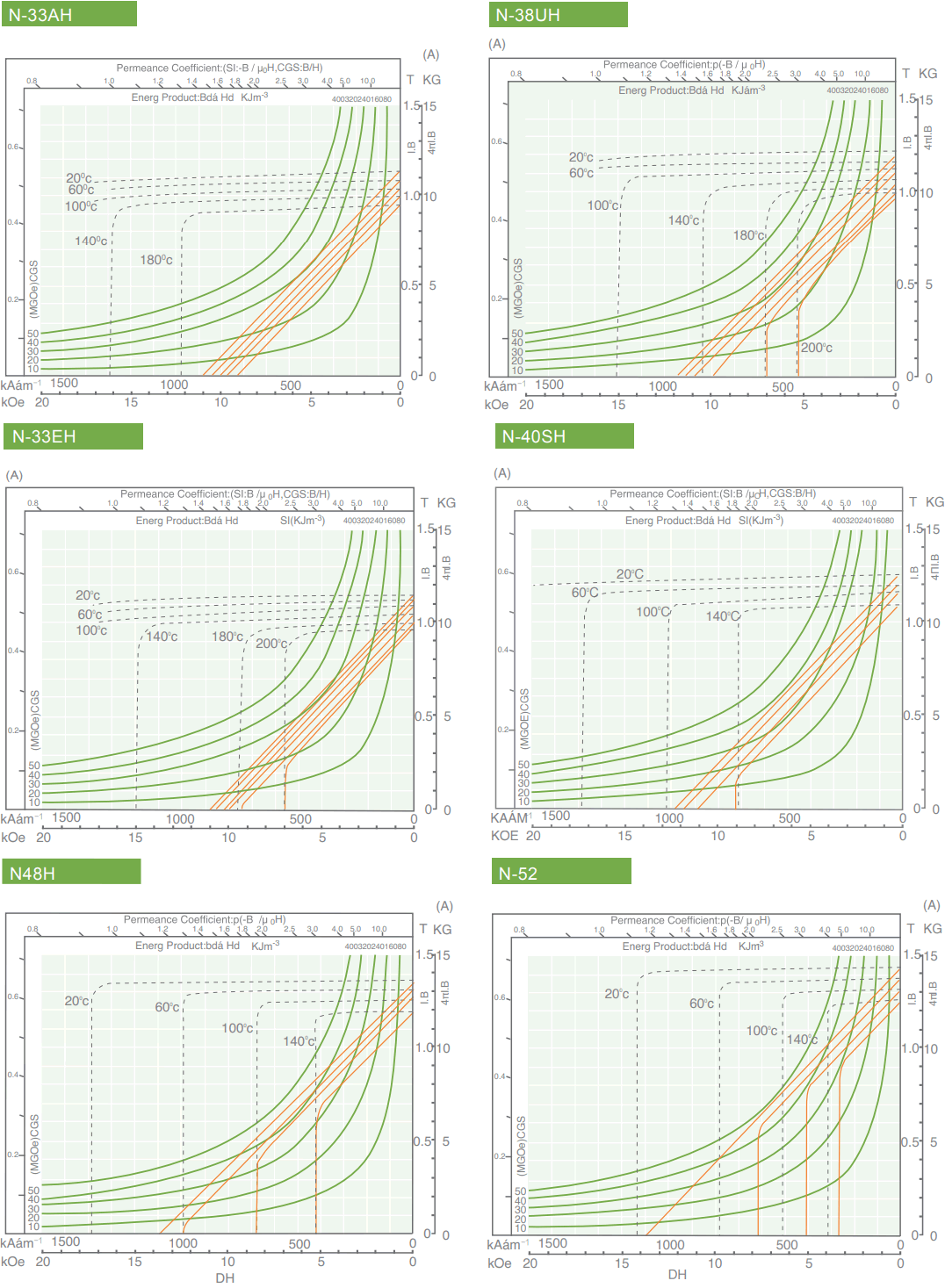

06. Neodymium iron boron curve

钕铁硼曲线图

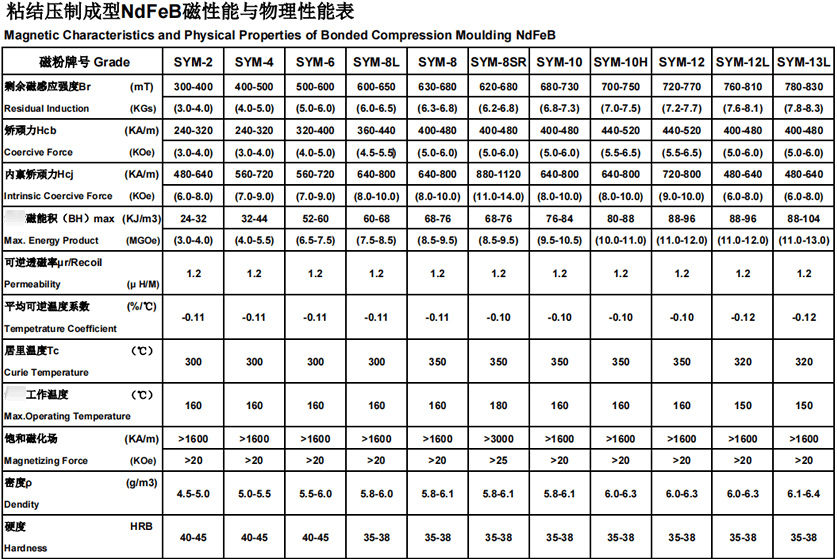

07. Magnetic and Physical Properties of NdFeB Formed by Bonding and Pressing

粘结压制成型NdFeB磁性能与物理性能表
